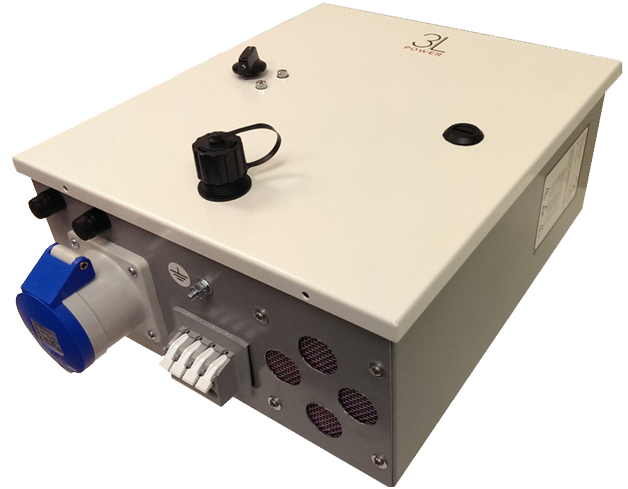

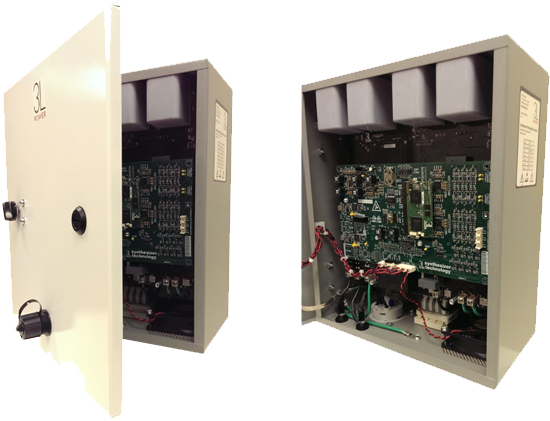

Synthesizer Solar Inverter

  • Power: 5 kVA
  • Voltage: 240 Vac out, 180-600 Vdc input (180-425 Vmp)
  • Weight: 26.5 Lbs

3L Power's patent-pending Synthesizer Solar Inverter is an ultra-light and cost-effective solar inverter with a wide-input voltage range. In contrast to other light transformerless solar inverters, the PV array can have a grounded conductor, allowing for common 600V cable and grounded conductor wiring practices.

The first Synthesizer solar inverter connected to the grid in late 2013. Our test inverter in Concord, MA continues to drive power onto the grid every day for continuing lifetime testing. This inverter is connected to our test array and runs MPPT algorithms while collecting performance data. Here are some power, voltage and energy curves from our previous site in Waltham, MA:

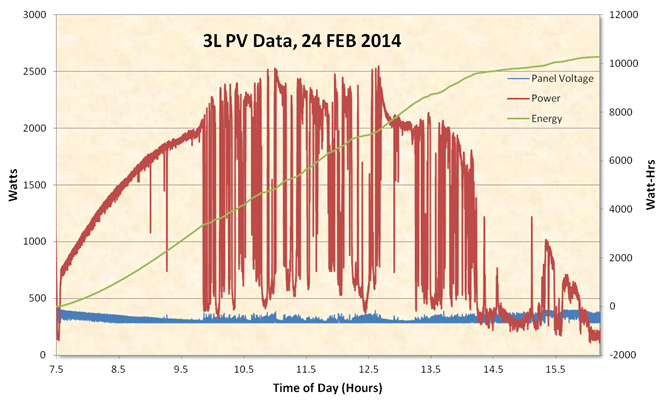

24 February, 2014 (variable cloudiness):

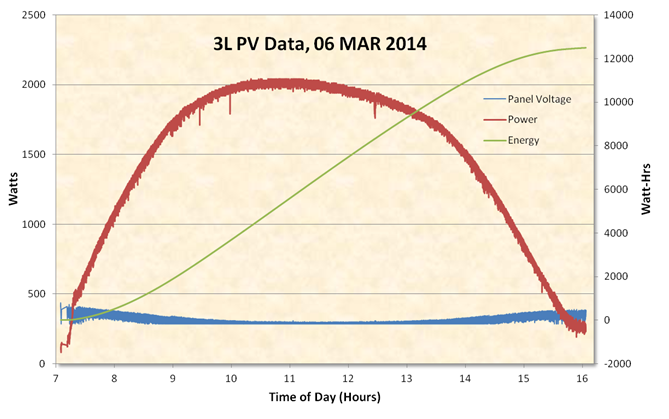

06 March, 2014 (clear):
